Radiant: Concolic Execution for Solana Programs

December 22, 2025 • inversive

This article introduces Radiant, a binary-level concolic execution framework for Solana programs.

Introduction
Motivation
How it works
Architecture
Example Walkthrough
Cross-CPI Concolic Execution
Additional Capabilities
Conclusion

Introduction

Radiant is an advanced testing framework for Solana programs that leverages concolic execution, a hybrid approach combining concrete and symbolic execution.

Radiant models program input fields and account states as either concrete values or symbolic variables. Given a target code location, it uses symbolic execution to determine which input values enable execution paths that reach that location.

Motivation

Security auditors combine multiple techniques when analyzing smart contracts, ranging from manual code review to understand program logic, fuzzing to systematically test the code base, and formal verification for critical properties. Each technique has distinct strengths. Manual review leverages human insight and reasoning, fuzzing explores behavior empirically while formal methods provide mathematical rigor.

Radiant augments this toolkit with concolic execution, a technique that combines concrete execution with symbolic execution. But why concolic execution instead of purely symbolic execution?

Solana’s architecture presents a unique challenge, programs are stateless and operate on accounts passed as input. A transaction can include dozens of accounts, each with arbitrary data and state. Making everything symbolic, can quickly become impractical. The high number of symbolic variables can overwhelm the constraint solver, and make analysis intractable.

Radiant’s concolic approach solves this by starting with a concrete execution context representing a deployment with actual account data, balances, and program state. From this concrete baseline, one can selectively mark specific values as symbolic. Perhaps just the instruction parameters, or specific fields within an account’s data. This selective symbolization keeps the analysis focused and tractable while still enabling targeted path exploration.

This approach is particularly powerful when combined with fuzzing. Fuzzers excel at exploring the program state space at scale but struggle to reach deep nested code paths fenced by conditional statements. Radiant addresses this by solving constraints on the symbolized values to generate precise inputs that reach specific code locations.

How it works

Understanding Radiant’s approach requires first recognizing the limitations of traditional testing methods. Consider a typical testing scenario applied to given Solana program:

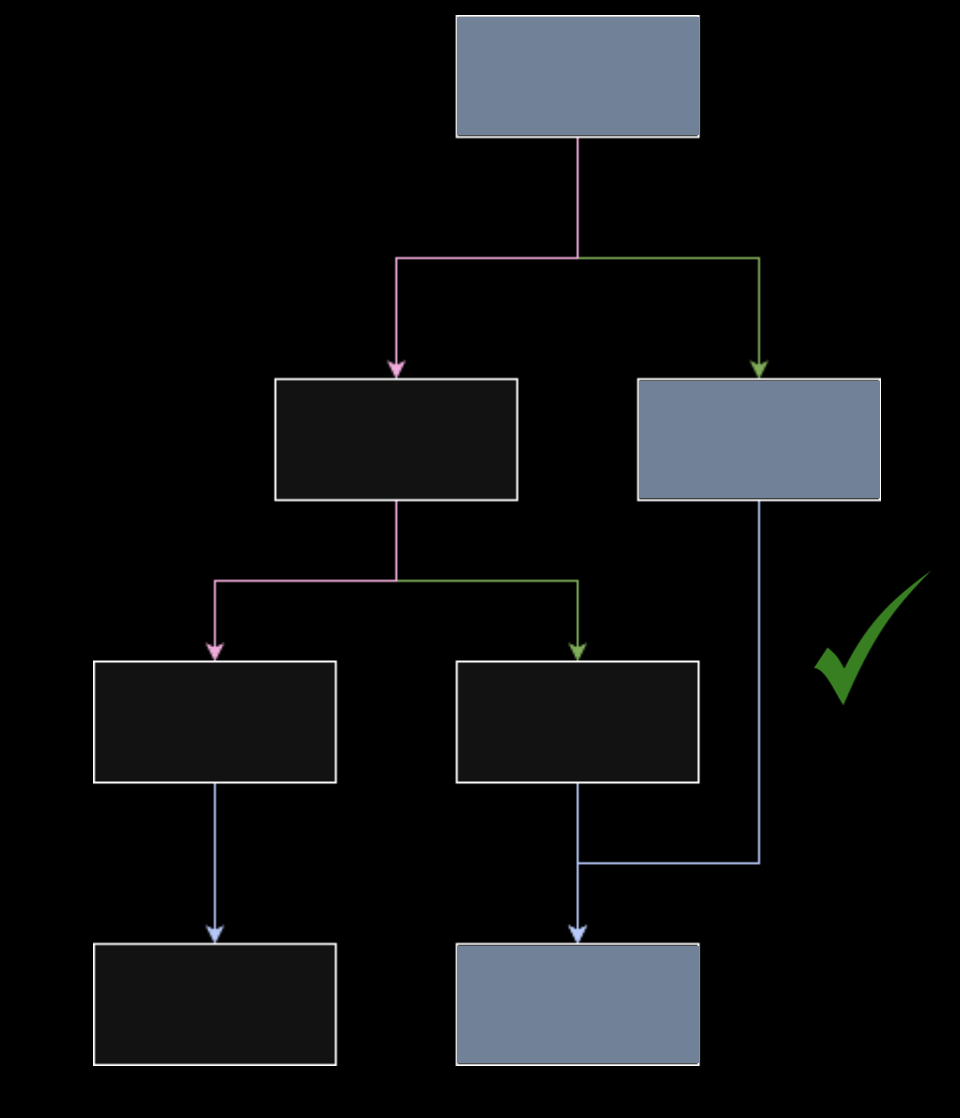

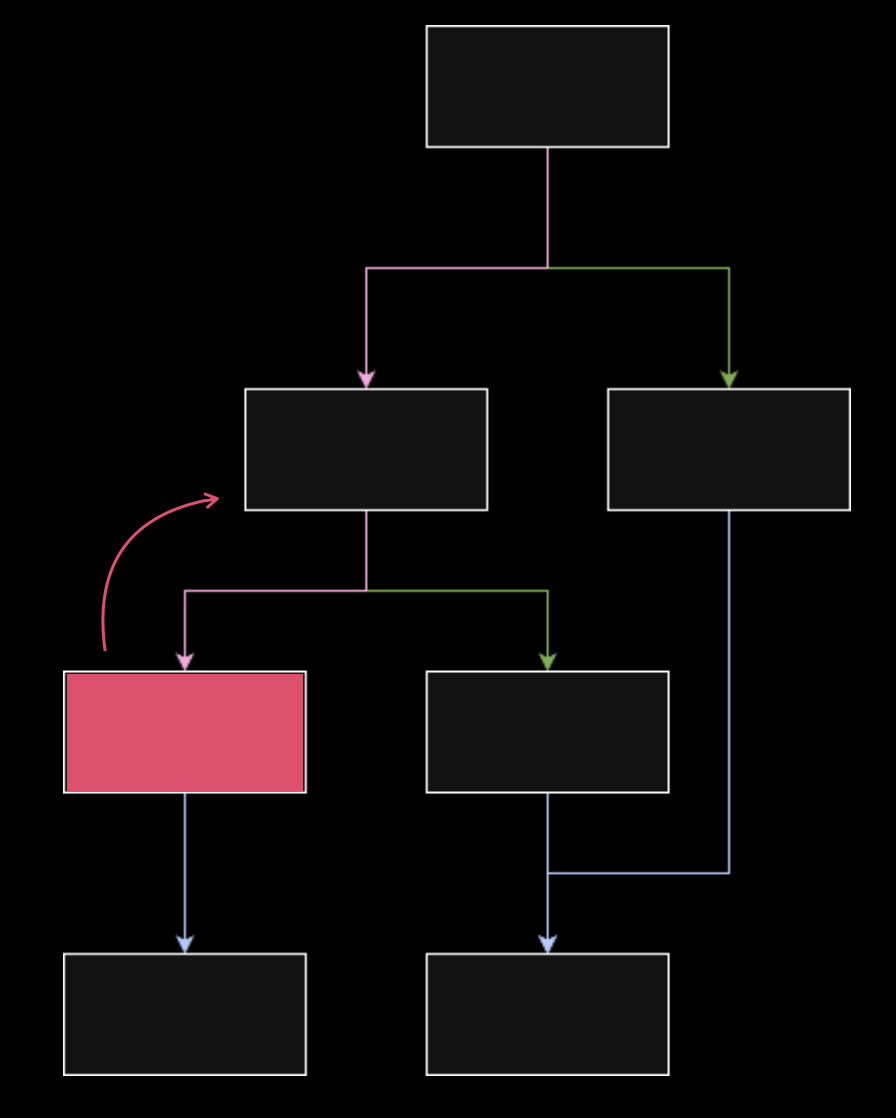

The control flow graph (CFG) above shows the execution paths taken when running different tests. Each test explores certain branches and basic blocks within a given program’s logic.

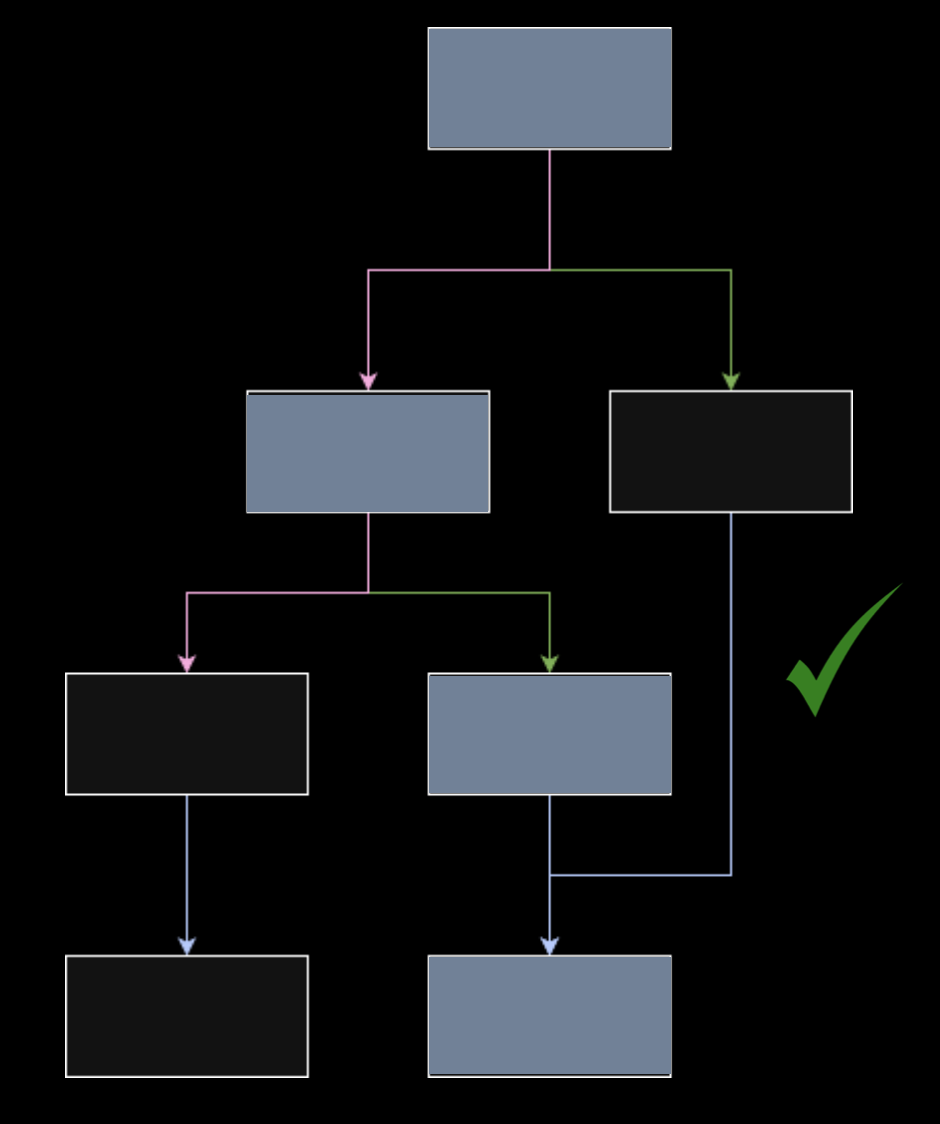

While multiple tests increase code coverage, they still follow predictable paths determined by the specific test inputs. This approach often misses edge cases that lurk in unexplored execution paths.

Consider a scenario where a bug manifests in a specific basic block due to miscalculations caused by a previous block due to unexpected state changes.

Targeted Symbolic Execution

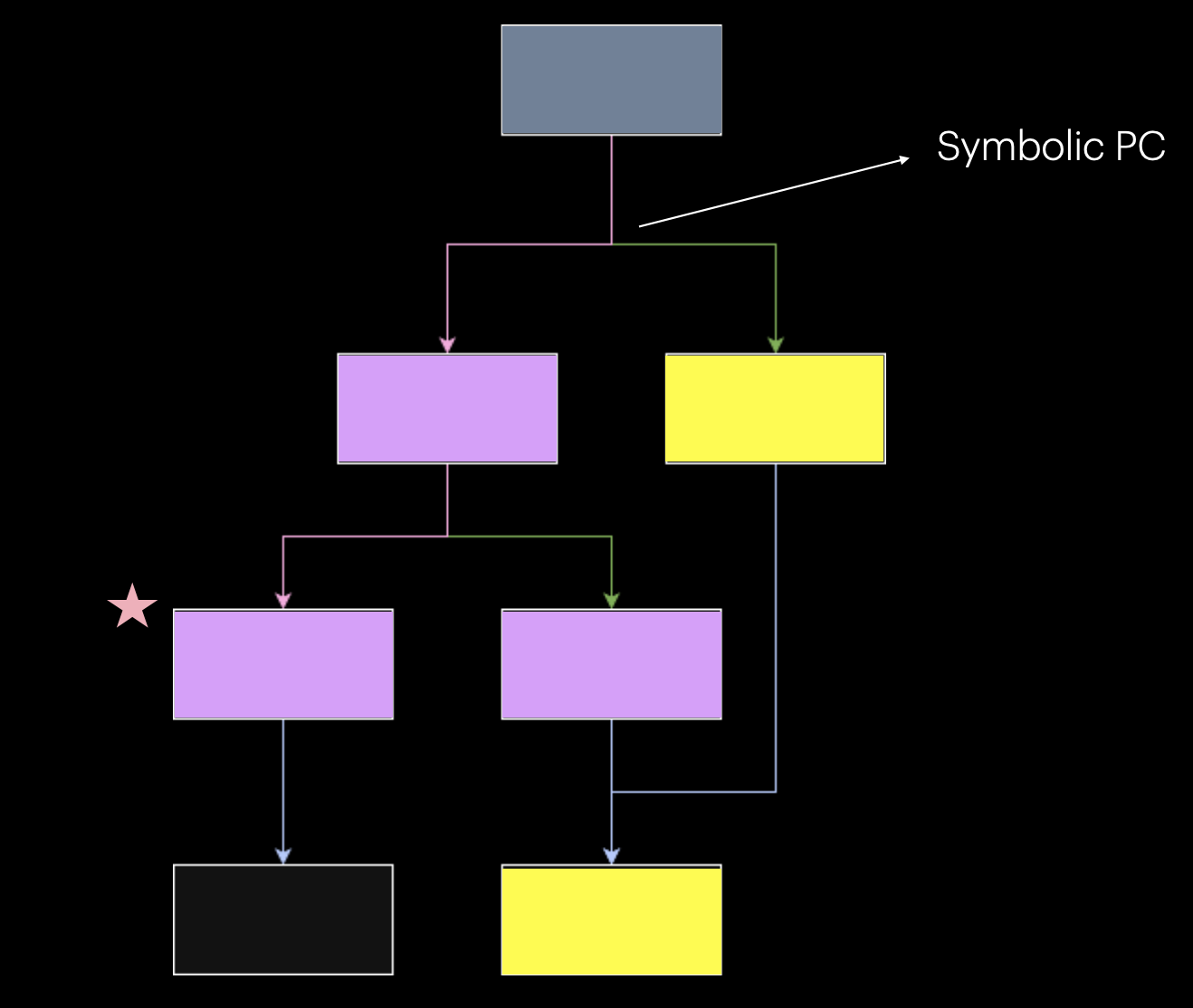

Radiant addresses this by enabling targeted basic block exploration. Following a bottom-up approach, instead of hoping random inputs will stumble upon problematic code paths, Radiant can explicitly target specific basic blocks to reach.

Target basic blocks can be selected through multiple approaches:

Manual Analysis: Security auditors identify suspicious code patterns and target those blocks directly
Automated Approaches: Heuristics or static analysis tools identify potentially vulnerable blocks
Hybrid Strategies: Automatically explore multiple targets while excluding regions of code that are known to be safe or irrelevant

Once a target basic block is selected, Radiant performs symbolic execution to discover the conditions needed to reach it:

Symbolic Variable Introduction: Radiant treats selected input fields and account states as symbolic variables rather than concrete values
Path Exploration: As execution progresses, whenever a symbolic program counter (PC) is encountered, typically a branch instruction representing a conditional statement that depends on symbolic variables, the control flow diverges
Parallel Path Analysis: Each divergent path is explored symbolically in parallel, building path constraints that capture the conditions required to reach each branch
Target Achievement: When the symbolic execution reaches the target basic block, Radiant has accumulated all the path constraints necessary to reach that code
Concretization: Finally, Radiant solves these constraints and concretizes the symbolic values, producing concrete input values that will deterministically trigger the target basic block

This is fundamentally how binary-level symbolic execution frameworks like angr and Manticore operate on traditional binaries.

These tools enable security researchers and developers to analyze complex execution paths, and generate concrete inputs that trigger specific code paths.

Architecture

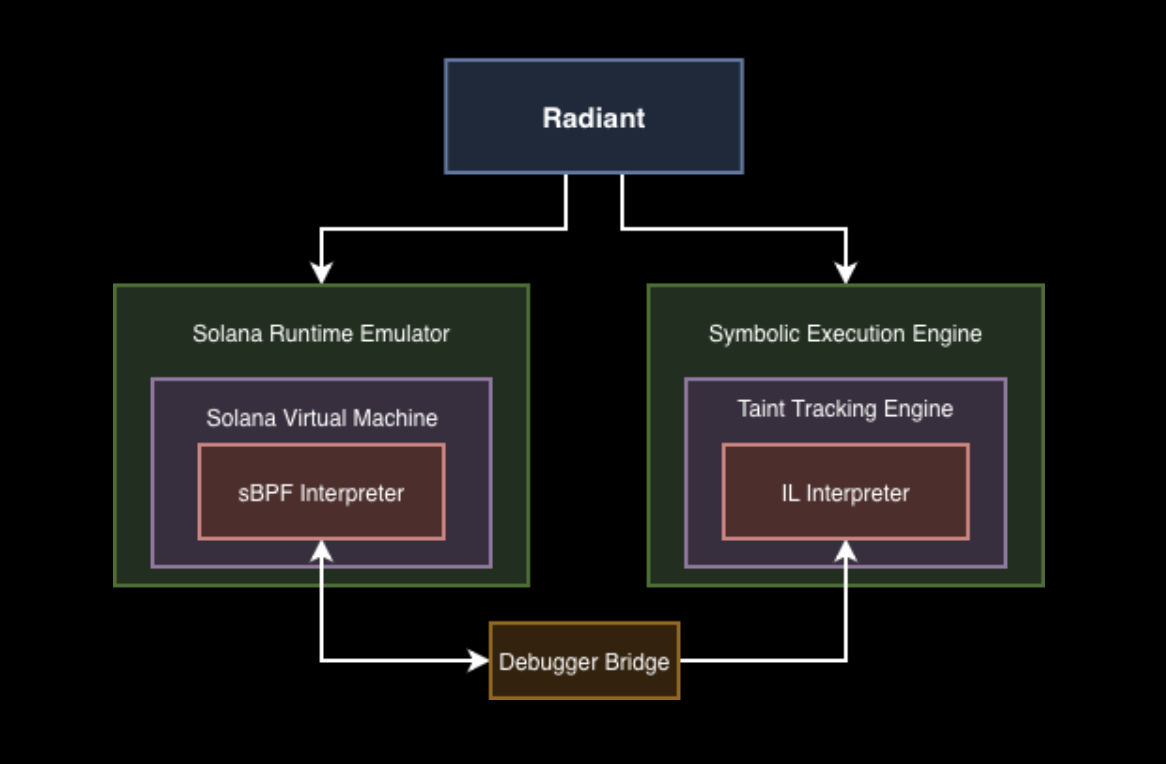

Radiant’s architecture consists of two parallel execution engines coordinated through a debugger bridge:

Solana Runtime Emulator

The left side of the architecture provides concrete execution through the Solana Runtime Emulator. Radiant leverages LiteSVM, a lightweight Solana Virtual Machine that executes programs in their native sBPF (Solana Berkeley Packet Filter) bytecode format. This component runs actual program instructions with concrete values while maintaining accurate runtime state, including account data, instruction context, and program execution flow.

Symbolic Execution Engine

The right side contains the Symbolic Execution Engine, built around a Taint Tracking Engine. This engine includes an IL Interpreter (Intermediate Language Interpreter) that operates on a lifted representation of the program.

Radiant is built on top of a modified version of radius2, a powerful symbolic execution framework that leverages radare2’s ESIL (Evaluable Strings Intermediate Language) as its intermediate language.

This work builds directly on our sBPF architecture contributions to radare2, which we developed specifically to enable advanced binary analysis for Solana programs. We presented this work at r2con 2025, showcasing the process of implementing sBPF support in radare2.

Debugger Bridge

The Debugger Bridge serves as the coordination layer between both engines, implemented through a GDB stub server integrated into a modified version of solana-sbpf. This implementation enables standard GDB Remote Serial Protocol communication between the Solana VM and the symbolic execution engine.

The bridge operates using a two-stage architecture:

Deployment: Runs an instance of LiteSVM with an embedded GDB server listening for connections.
Symbolic Execution: Uses radare2 to attach to the GDB server, read concrete context from memory, and pass it to radius2 for symbolic execution. This process repeats intermittently whenever radius2 needs additional concrete context.

Through the GDB protocol, Radiant can:

Set breakpoints at specific program counter locations
Control execution flow
Read memory and register state on-demand
Synchronize concrete execution with symbolic execution context

This dual-engine architecture enables concolic execution. The modified solana-sbpf runtime provides program and transaction concrete context through its GDB interface, while radare2 extracts this context and radius2 leverages it to build symbolic constraints necessary for path exploration.

Ideally, symbolic execution would leverage compiler-based intermediate representations like LLVM IR, which provide well-defined semantics and strong tooling support. However, existing LLVM-based symbolic execution frameworks lack mature support for sBPF’s ISA and SIMD extensions. Rather than building sBPF support from scratch in an LLVM-based framework, we chose to use ESIL (Evaluable Strings Intermediate Language) from radare2, which already had the foundation for sBPF analysis through our prior contributions.

This choice required validation. We needed to ensure our ESIL instruction models accurately represent sBPF semantics. To achieve this, we leveraged the debugger bridge to implement a differential fuzzer that compared execution traces between the ESIL interpreter and live debugger sessions.

By fuzzing instructions and comparing their effects on registers and memory in both environments, we were able to validate with a reasonable degree of confidence, that our ESIL models correctly capture sBPF semantics, providing higher confidence in the symbolic execution results despite not using a compiler IR.

Example Walkthrough

Let’s demonstrate Radiant with a practical example: discovering the exact input values that trigger a panic condition in a Solana program.

Note: This example uses a simplified program to clearly illustrate Radiant’s symbolic execution capabilities. Real-world Solana programs involve significantly more complex logic, but the same methodology applies.

The Target Program

Consider the follwing Solana program:

#[program]
pub mod hello_world {
    use super::*;

    pub fn initialize_fn(ctx: Context<InitializeContext>, input: u8) -> Result<()> {
        msg!(
            "Hello World address: {}",
            ctx.accounts.hello_world_account.key()
        );
        let hello_world_store = &mut ctx.accounts.hello_world_account;
        hello_world_store.input = input;

        if input > 200 && input < 210 {
            panic!("This number is magic")
        }

        Ok(())
    }
}

The program accepts a u8 input parameter and panics only when the value falls within the narrow range of 201-209. Traditional fuzzing would eventually discover this, but symbolic execution can find all valid inputs systematically.

Understanding snapshot_pc and target_pc

Before running Radiant, we need to identify two critical program counter locations:

snapshot_pc: The program counter where Radiant takes a snapshot of the program state and begins symbolic execution.
target_pc: The specific basic block we want to reach, in this case, the panic statement. All execution paths explored by Radiant aim to satisfy the constraints necessary to reach this target.

Note: If snapshot_pc its set to 0, Radiant will automatically populate this to the instruction function entry point or program entry point, making it completely deterministic without manual binary analysis.

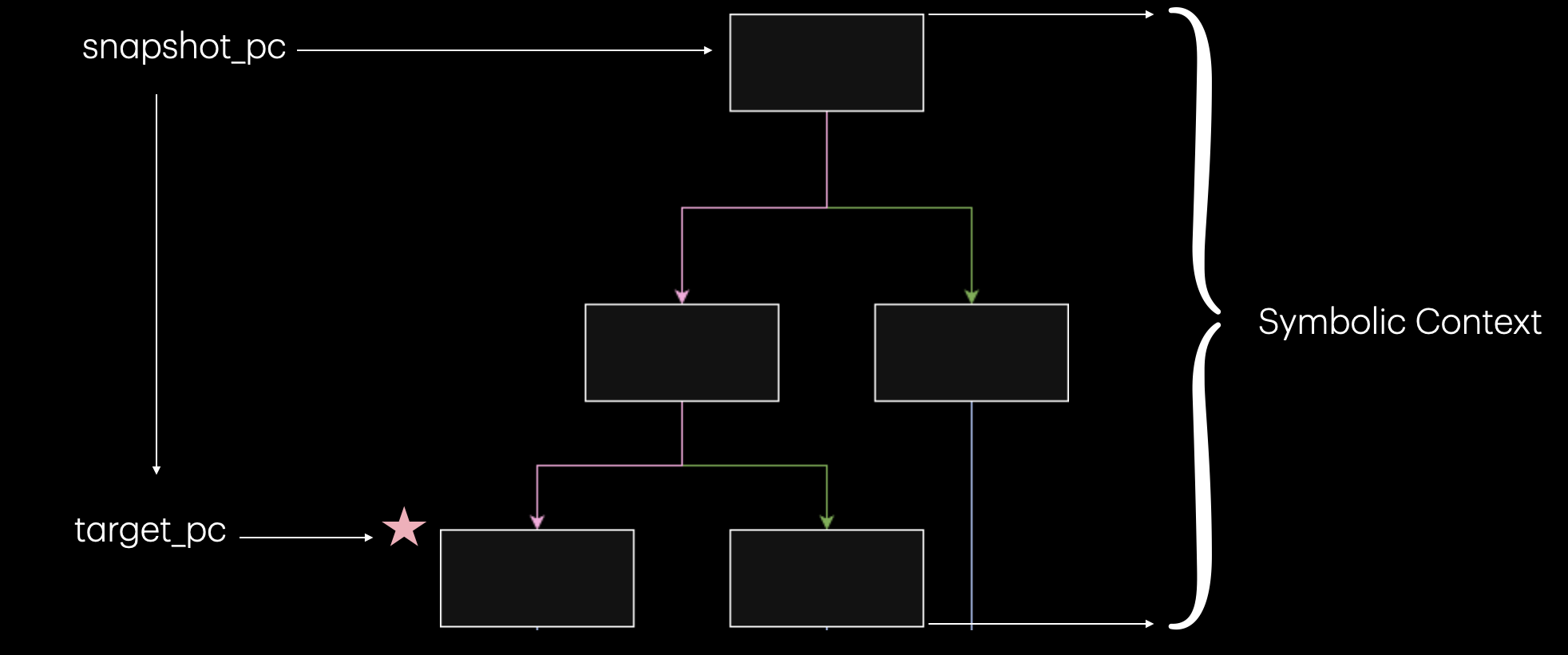

The diagram illustrates how symbolic execution starts from the snapshot point and explores multiple paths within the symbolic context until reaching the target basic block.

Radiant Test Configuration

The test setup involves two main components:

1. Radiant Test Configuration (tests/test.rs):

use radiant_test::*;
use std::collections::HashSet;
use crate::setup::*;

#[test]
fn test_example() -> Result<()> {
    let snapshot_pc = 0x100007018;
    let target_pc = 0x1000078d8;

    let (config, deployment_thread) = setup::config(
        snapshot_pc,
        target_pc,
        20,
        true,
        false
    );

    let mut test = RadiantTest::new(config)?;

    let result = test.run(SymbolizeSpec::InstructionData {
        length: 1
    })?;

    let solutions = result.into_bytes();

    println!("\n[+] Found {} solutions", solutions.len());

    for (i, sol) in solutions.iter().enumerate() {
        let value = sol[0];
        println!("   Solution #{}: {} (0x{:02x})", i + 1, value, value);

        assert!(value > 200 && value < 210,
            "Solution {} is outside valid range (201-209)", value);
    }

    Ok(())
}

The test specifies the snapshot and target program counters, then symbolizes the last byte of instruction data (the u8 input parameter), taking into account the displacement that would account for the instruction discriminator.

2. Program Deployment (src/deployment.rs):

pub fn call_initialize_fn(&mut self, input: u8) -> Result<()> {
    println!("\n[*] Calling initialize_fn...");

    let (hello_world_account_pda, _bump) = self.deployed.find_pda(&[b"hello_world_seed"]);

    let mut data = vec![0x12, 0xbb, 0xa9, 0xd5, 0x5e, 0xb4, 0x56, 0x98];
    data.push(0u8);

    let instruction = Instruction {
        program_id: self.deployed.program_id,
        accounts: vec![
            AccountMeta::new(self.deployed.payer_pubkey(), true),
            AccountMeta::new(hello_world_account_pda, false),
            AccountMeta::new_readonly(system_program::ID, false),
        ],
        data,
    };

    let recent_blockhash = self.deployed.svm.inner.latest_blockhash();
    let message = Message::new(&[instruction], Some(&self.deployed.payer_pubkey()));
    let tx = Transaction::new(&[&self.deployed.payer], message, recent_blockhash);

    self.deployed.enable_debug();

    match self.deployed.svm.inner.send_transaction(tx) {
        Ok(result) => {
            println!("[+] initialize_fn successful!");
            for log in &result.logs {
                println!("   {}", log);
            }
            Ok(())
        }
        Err(e) => Err(anyhow::anyhow!("initialize_fn failed: {:?}", e)),
    }
}

The deployment code constructs the transaction, enables the debugger interface, and executes the program to the point where its passed to Radiant for symbolic execution.

Binary Analysis with radare2

Finding the correct snapshot_pc and target_pc values, at the moment requires binary-level analysis. We extended radare2, a popular reverse engineering framework, to support sBPF architecture with enhanced disassembly features:

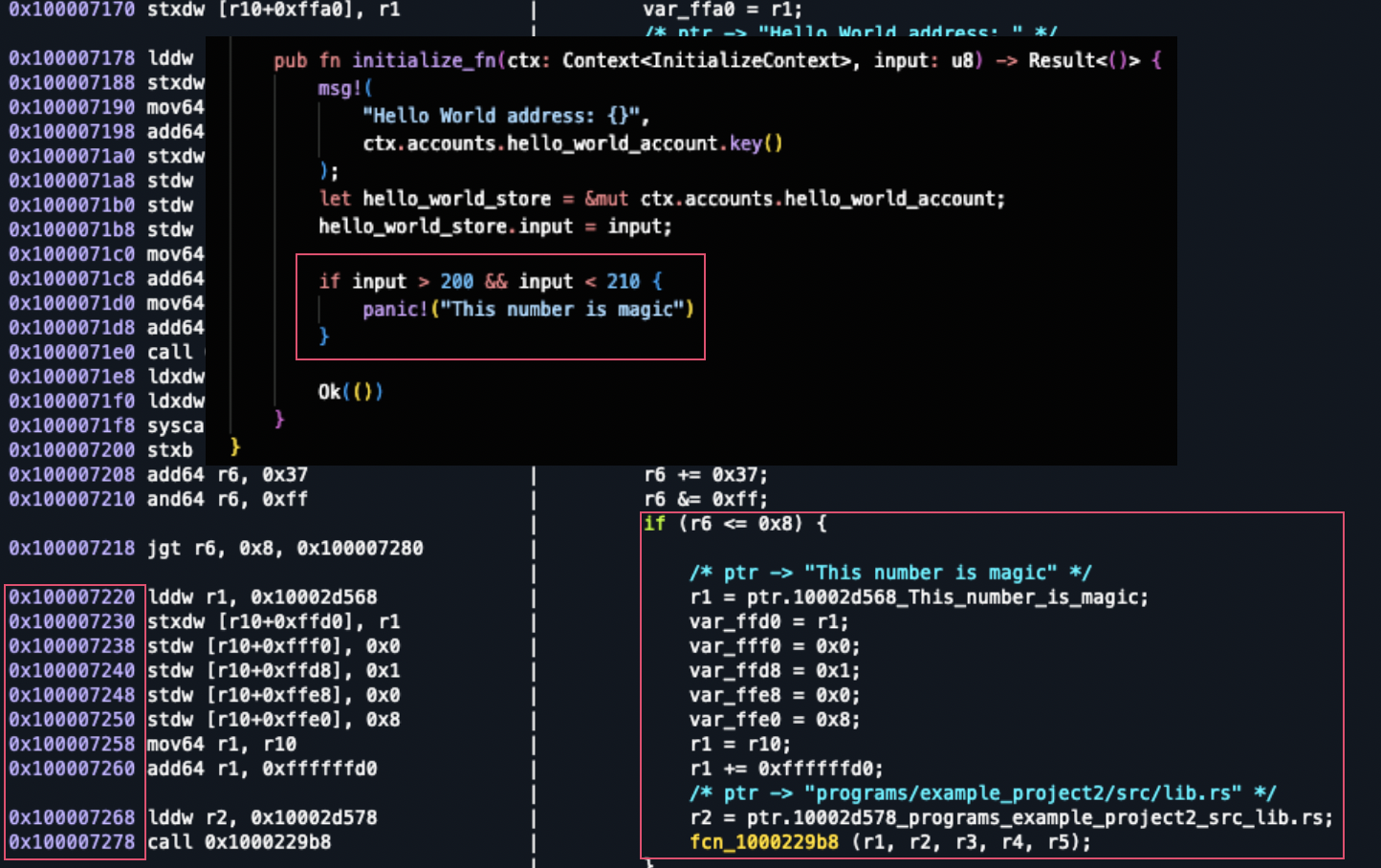

The screenshot demonstrates some of the enchancements we implemented in radare2:

Left panel: sBPF disassembly showing bytecode instructions with their corresponding addresses in the binary
Right panel: Intermediate Language (IL) representation with aggregated Rust source strings embedded directly in the disassembly

Notice how the IL output includes Rust string and pointer references, in which we can spot the panic message string ("This number is magic"), making it trivial to locate the target basic block in the binary. The IL also shows the conditional logic translated from sBPF, revealing the comparison if (r6 <= 0x8) that corresponds to the source-level range check.

Although there is yet a lot to be improved, these enhancements bridge the gap between high-level Rust source code and low-level sBPF bytecode, enabling identification of program counter locations.

As mentioned earlier, we presented this work at r2con 2025, showcasing the process of implementing these features in radare2 for Solana program analysis.

Demo

The demo above shows Radiant discovering all input values in the range 201-209 that trigger the panic condition. Rather than relying on random fuzzing to eventually hit this narrow window, Radiant’s constraint solver deterministically generates all valid solutions.

Results

When executed, Radiant outputs:

[+] Found 9 solutions
   Solution #1: 201 (0xc9)
   Solution #2: 202 (0xca)
   Solution #3: 203 (0xcb)
   Solution #4: 204 (0xcc)
   Solution #5: 205 (0xcd)
   Solution #6: 206 (0xce)
   Solution #7: 207 (0xcf)
   Solution #8: 208 (0xd0)
   Solution #9: 209 (0xd1)

Radiant has systematically identified all nine values that satisfy the constraint input > 200 && input < 210, providing complete coverage of this specific execution path without manual guesswork or exhaustive fuzzing.

Cross-CPI Concolic Execution

One of Radiant’s advanced capabilities is cross-program invocation (CPI) concolic execution. In Solana’s composable architecture, programs frequently invoke other programs through CPI, creating complex execution flows.

Note: The following example uses a simplified two-program interaction to demonstrate the cross-CPI technique. Real-world protocols typically involve more complex interactions.

Targeting Code Reachable Only via CPI

Consider a scenario where your target basic block exists in a callee program but can only be reached through a caller program’s CPI invocation:

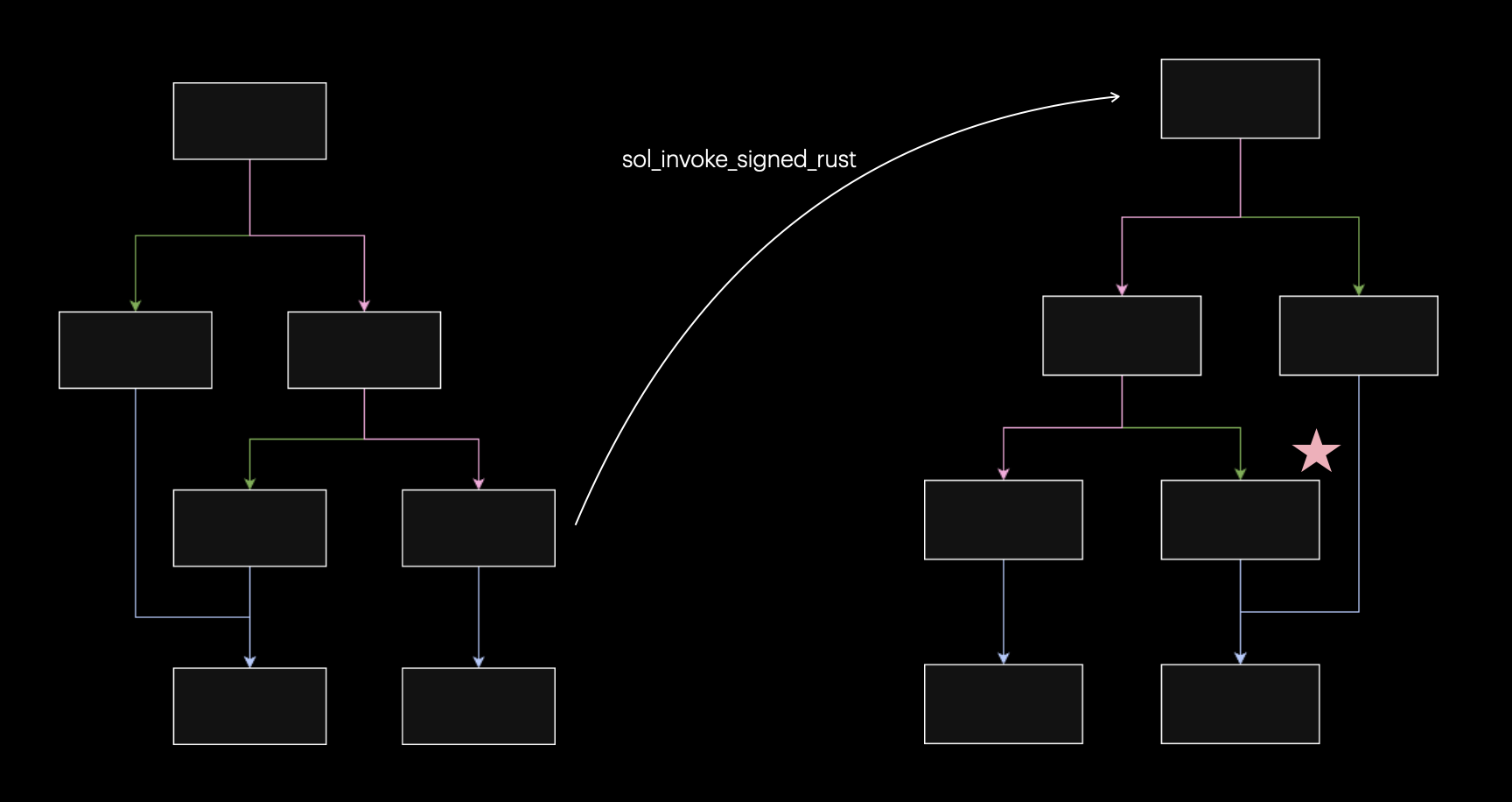

The diagram illustrates this problem. On the left, we have the caller program’s control flow graph, and on the right, the callee program’s CFG. The target basic block (marked with a star) resides within the callee program’s execution paths, only reachable after a sol_invoke_signed_* CPI call from the caller.

Traditional symbolic execution frameworks would struggle here, they typically analyze single programs in isolation. To reach the target in the callee, you need to understand how values are transformed through the CPI boundary and propagate constraints backward through both programs.

Example

Let’s examine a concrete example with two programs. A caller that transforms inputs before invoking a callee.

Callee Program (cpi_callee):

#[program]
pub mod cpi_callee {
    use super::*;

    pub fn increment(ctx: Context<Modify>, amount: u64) -> Result<()> {
        let counter = &mut ctx.accounts.counter;

        require!(
            counter.authority == ctx.accounts.authority.key(),
            ErrorCode::Unauthorized
        );

        if amount >= 660 && amount < 666 {
            panic!("TARGET REACHED: amount falls in bounds");
        }

        if amount >= 666 && amount < 700 {
            panic!("TARGET REACHED: amount falls in bounds 2");
        }

        counter.count = counter.count.checked_add(amount)
            .ok_or(ErrorCode::Overflow)?;
        counter.operation_count += 1;

        msg!("Counter incremented by {}. New value: {}", amount, counter.count);
        Ok(())
    }
}

The callee has two panic conditions: when amount is in [660, 666) or [666, 700). For this example, we target the second panic condition at line checking if amount >= 666 && amount < 700.

Caller Program (cpi_caller):

#[program]
pub mod cpi_caller {
    use super::*;

    pub fn cpi_increment_counter(
        ctx: Context<CpiModifyCounter>,
        amount: u64,
    ) -> Result<()> {
        let transformed_amount = amount.checked_add(123).unwrap();

        let cpi_program = ctx.accounts.callee_program.to_account_info();
        let cpi_accounts = cpi_callee::cpi::accounts::Modify {
            authority: ctx.accounts.authority.to_account_info(),
            counter: ctx.accounts.counter.to_account_info(),
        };
        let cpi_ctx = CpiContext::new(cpi_program, cpi_accounts);

        cpi_callee::cpi::increment(cpi_ctx, transformed_amount)?;
        Ok(())
    }
}

The caller transforms the input by adding the value 123 before passing it to the callee via CPI.

Radiant’s Cross-CPI Solution

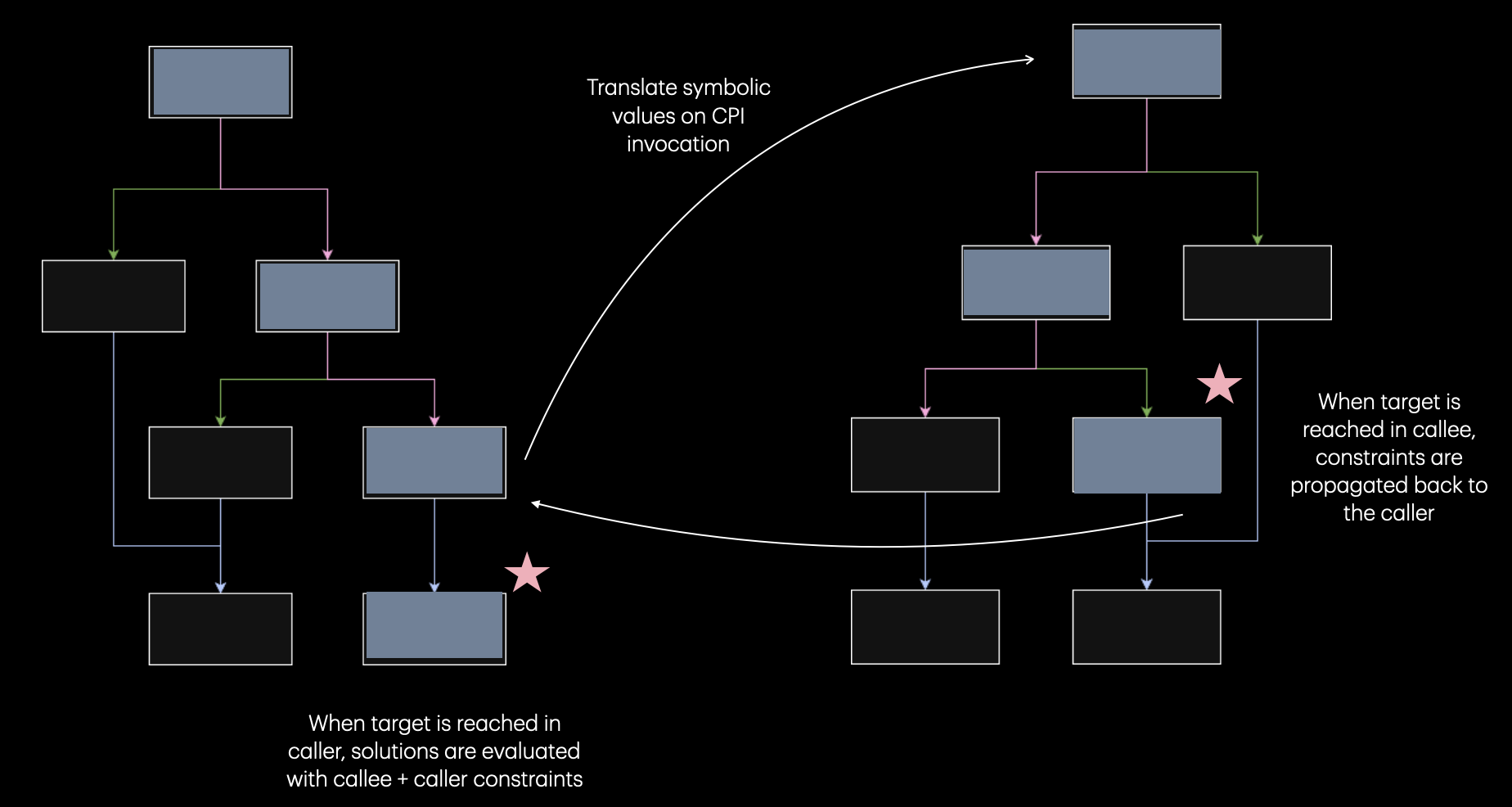

Radiant’s cross-CPI concolic execution works by tracking symbolic values across program boundaries:

Symbolic Value Propagation: When symbolic execution reaches a CPI invocation point in the caller, Radiant identifies the symbolic variables being passed as arguments.
CPI Boundary Translation: At the sol_invoke_signed_* boundary, Radiant translates the symbolic values from the caller’s context into the callee’s execution context.
Callee Exploration: Symbolic execution continues in the callee program, exploring paths with the translated symbolic values.
Constraint Propagation: When the target basic block is reached in the callee (marked with a star), Radiant has accumulated constraints from the callee. These constraints are then propagated backward through the CPI boundary to the original caller inputs.
Unified Constraint Solving: The constraint solver evaluates the combined constraints from both programs, generating concrete input values that satisfy the entire cross-program execution path.

Implementation

When a Solana program executes a CPI syscall (sol_invoke_signed_c or sol_invoke_signed_rust), the Solana VM spawns a new VM instance for the callee program. Radiant leverages this architecture by connecting to consecutive VM instances through multiple debugging sessions:

Both caller and callee programs are deployed in the same LiteSVM instance. When the caller VM executes, a GDB server starts on port 9999. During symbolic execution, when radius2 detects the CPI syscall, a second VM instance is spawned for the callee with its own GDB server on port 10000. Radiant creates a nested concolic execution session for the callee, and solutions satisfying constraints in both programs are propagated back through the CPI boundary.

Cross-CPI Test Configuration

Radiant’s cross-CPI mode requires specifying program counter locations in both programs:

#[test]
fn test_cross_cpi() -> Result<()> {
    let ((caller_program_path, callee_program_path), deployment_thread) =
        setup::setup_deployment();

    let config = RadiantTestConfig::new(caller_program_path)
       .cross_cpi_state(
            0x100007ae0,
            Some(0x100007d90),
            0x100007c88,
            0x100008bf8,
        )
        .callee_avoid(vec![])
        .max_solutions(20)
        .verbose(true);

    let mut test = RadiantTest::new(config)?;
    let result = test.run(SymbolizeSpec::InstructionData { length: 8 })?;
    let solutions = result.into_bytes();

    println!("\n[CROSS CPI] Found {} solutions", solutions.len());

    for (i, sol) in solutions.iter().enumerate() {
        if sol.len() >= 8 {
            let amount = u64::from_le_bytes(sol[0..8].try_into().unwrap());
            println!("  Solution #{}: amount = {} (0x{:x})", i + 1, amount, amount);
            assert!(amount + 123 >= 666 && amount + 123 < 700,
                "Callee solution {} is not in [666, 700)", amount);
        }
    }

    Ok(())
}

The cross_cpi_state configuration specifies:

caller_snapshot_pc (0x100007ae0): Where to snapshot the caller’s state before CPI. Setting this to 0 will automatically use the caller’s instruction entry point.
caller_target_pc (0x100007d90): Optional target in the caller (or None)
callee_snapshot_pc (0x100007c88): Where to snapshot the callee’s state after CPI entry. Setting this to 0 will automatically use the callee’s instruction entry point.
callee_target_pc (0x100008bf8): The target basic block in the callee (panic location)

Cross-CPI Results

When executed, Radiant discovers all input values that trigger the callee’s panic condition:

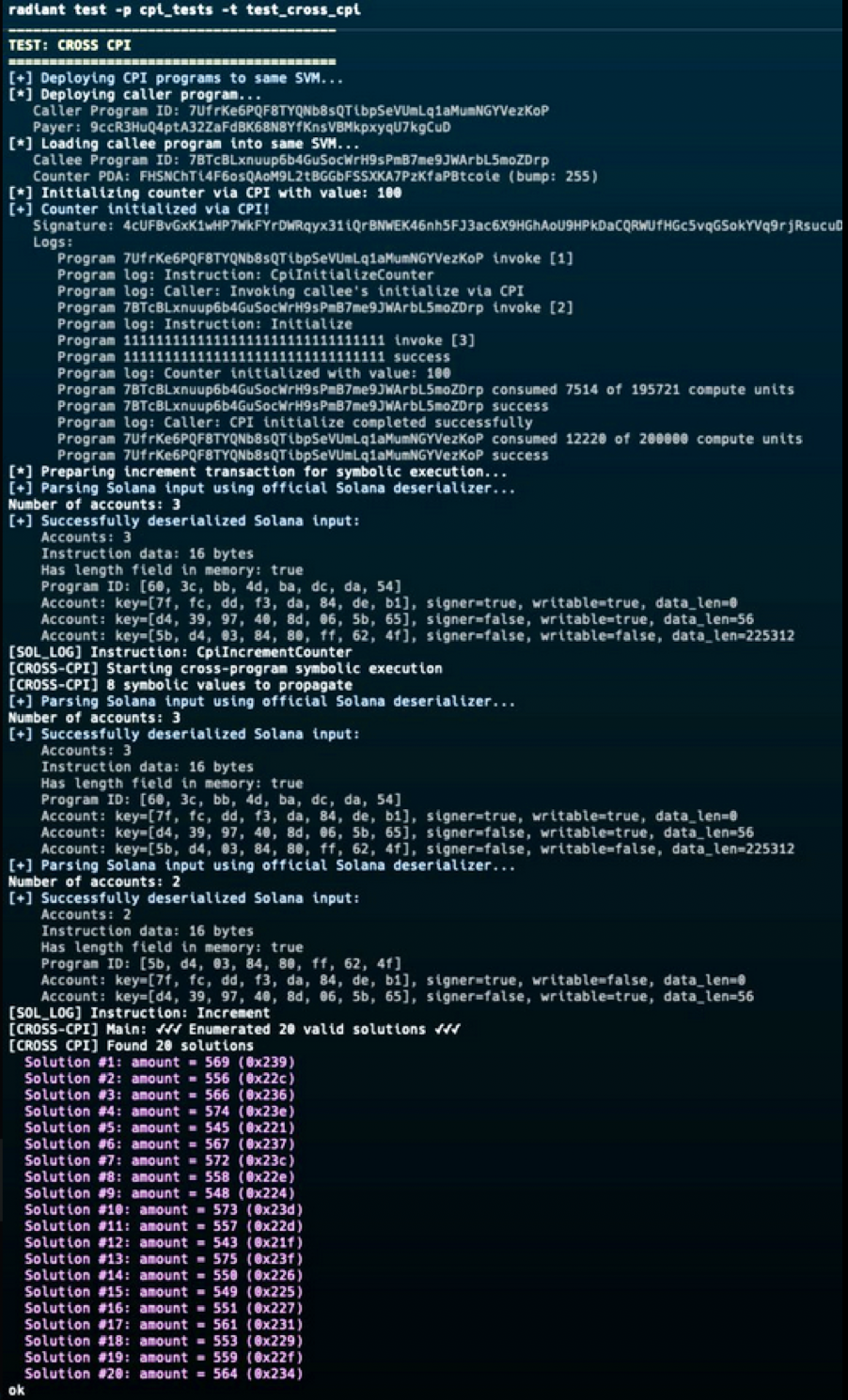

The output shows the complete cross-CPI analysis process:

Deployment Phase: Both caller and callee programs are deployed to the same SVM instance, with the counter PDA initialized via CPI
Transaction Preparation: The increment transaction is prepared with symbolic instruction data
Cross-Program Symbolic Execution: Radiant tracks symbolic values as they propagate from caller to callee through the CPI boundary
Solution Generation: Twenty concrete solutions are discovered, all satisfying the constraint that amount + 123 falls within [666, 700)

The solutions include values like:

Solution #1: amount = 569 (0x239), transforms to 692
Solution #11: amount = 557 (0x22d), transforms to 680
Solution #20: amount = 564 (0x234), transforms to 687

Each solution satisfies the constraint that amount + 123 falls within [666, 700), demonstrating how Radiant automatically accounts for the caller’s transformation logic.

This capability becomes valuable when auditing composable protocols where vulnerabilities emerge from the interaction of multiple programs.

Additional Capabilities

Beyond the core symbolic execution features demonstrated above, Radiant supports:

Solana Syscalls: Radiant handles Solana syscalls during symbolic execution, enabling analysis of programs that rely on runtime features like account validation, cryptographic operations, and program-derived addresses.
Cross-Transaction Composability: Symbolic solutions from one transaction can be used in subsequent transactions with additional symbolic values, enabling analysis of multi-transaction workflows.
Cross-CPI Symbolic Execution: Radiant consumes symbolic solutions with translated constraint contexts across CPI boundaries, allowing evaluation of invariants involving program composition.
Future Open Source: We plan to open-source Radiant once it reaches higher maturity and we’ve refined its functionality.

Conclusion

Radiant brings concolic execution to Solana program security testing. By combining concrete and symbolic execution through its dual-engine architecture.

The framework’s capabilities, from targeted basic block exploration to cross-CPI symbolic execution, address the unique challenges of analyzing composable Solana programs symbolically.

As Solana’s ecosystem continues to grow in complexity, with protocols increasingly relying on multi-program interactions and intricate state machines, tools like Radiant become relevant for security research. The examples presented here demonstrate the foundation, but the methodology scales to real-world protocol auditing.

We’re continuing to develop and refine Radiant, and we look forward to open-sourcing it in the future.

← Back to Blog
